Energy Freedom

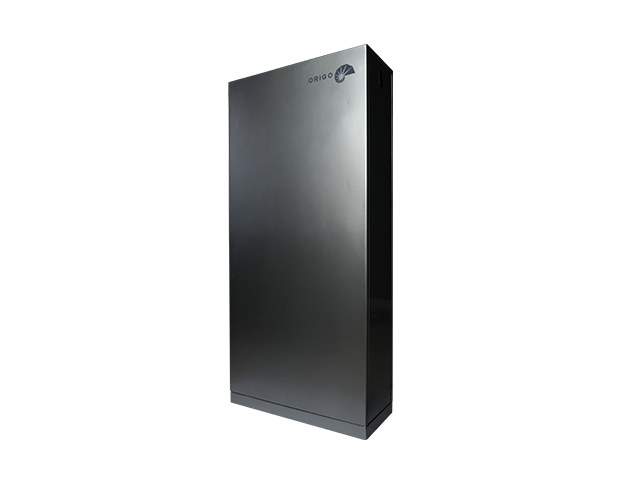

HESS+ V40R

  • Dimensions W/H/D

    460x1200x630mm

  • Max. Weight

    366Kg

  • Total Energy

    10-40kWh

  • DC/DC Efficiency

    ＞90.5%

  • Altitude

    Up to 2500 meters(8200 feet)

  • Cooling

    Natural and Passive

  • Inverter

    Internal integrated

  • Mounting

    Floor standing or wall mounting

More +

HESS + BATTERY SYSTEM

The HESS + battery system series is an intelligent energy storage solution that is safe, long-lasting and offers to 5-20+kWh of battery capacity. The sleek design combines smart energy management software with the safest and longest lasting batteries to efficiently manage home energy. It is comprised of basic Battery units, and can be scalable as needed. Installers can quickly design the right system size to meet the needs of both new and retrofit solar customers.

Reliable

• Proven high reliability LISHEN Series inverters

• limited warranty

• Independent Battery base units

• Cooling (fans)

Smart

• Grid-forming capability for backup operation

• Remote software and firmware upgrade

• Mobile app-based monitoring and control

Simple

• Fully integrated AC battery system

• Quick and easy plug-and-play installation

• Interconnects with standard household AC wiring

Safe

• Cells safety tested

• Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

Convenient

Usage throughout the day, store excess solar power for use at night and provide reliable backup power during power outages

Data Sheet

HESS+ V40R

MODEL NUMBER
HESS+ V40R
HESS HV20 Series

The HESS+ V40R series system with integrated battery management unit(BMU).

include:

- Based on an LISHEN LFP Battery 5.1 kWh basic module(BB04-16S1P), scalable system energy up to 20.0KWh

- Standing and movable, interconnect kit for wiring between batteries

Dimensions W/H/D460x1200x630mm
Max. Weight366Kg
Total Energy10-40KWh
Nominal Power Rating5/10KW
Nominal DC Voltage100AH

Cell Chemistry

LiFePO4

CoolingNatural and passive
Altitude
Up to 2,500 meters (8,200 feet)
MountingFloor standing and wall mounted
Current Rate1.0C

Battery Modules

2-8
Ambient Operating Temperature Range

Discharge: -35℃ to 65℃（-31℉ to 149℉）

Charge： 0℃ to 65℃（32℉ to 149℉）

Inverter

Intermal integrated

Enclosure ratingIP54
We reserve the right to make technical changes. The values, outputs, other technical data, images,   and diagrams in  this prospectus and in data sheets,                    advertisements, and other promotional  documents are approximate guidelines in all cases where they have not been identified  as binding.

1 Maximum round trip efficiency shown is calculated using the single cycle round trip efficiency(SCRTE) formula used by SGIP admin.

2 Please observe our applicable warranty conditions.
