Energy Freedom

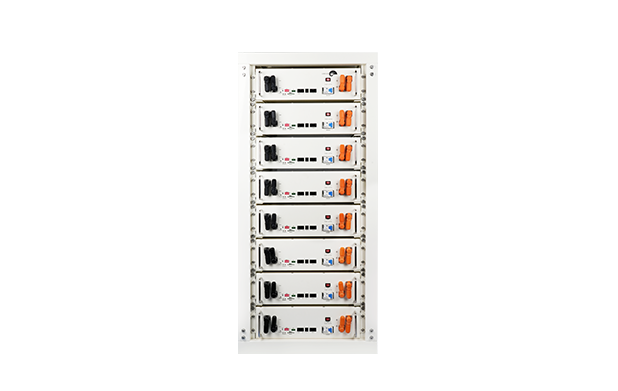

HESS+V40F51-R1

  • Dimensions W/H/D

    590*1300*670mm

  • Max. Weight

    395Kg

  • Total Energy

    40.0 kWh

  • Cell Capacity

    100Ah

  • Nominal power rating (Grid-tied output at 40°C)

    5.0 kW/10.0 kW

  • Cooling

    Natural and Passive

  • Current Rate

    1.0C

  • Nominal DC Voltage

    51.2V

More +

HESS+ Battery System V40

The HESS + battery system series is an intelligent energy storage solution that is safe, long-lasting and offers to 5-40+kWh of battery capacity. The sleek design combines smart energy management software with the safest and longest lasting batteries to efficiently manage home energy. It is comprised of basic Battery units, and can be scalable as needed. Installers can quickly design the right system size to meet the needs of both new and retrofit solar customers.

Reliable

• Proven high reliability LISHEN Series inverters

• limited warranty

• Independent Battery base units

• Cooling (fans)

Smart

• Grid-forming capability for backup operation

• Remote software and firmware upgrade

• Mobile app-based monitoring and control

Simple

• Fully integrated AC battery system

• Quick and easy plug-and-play installation

• Interconnects with standard household AC wiring

Safe

• Cells safety tested

• Lithium iron phosphate (LFP) chemistry for maximum safety and longevity

Convenient

Usage throughout the day, store excess solar power for use at night and provide reliable backup power during power outages



Data Sheet

HESS+V40F51-R1

MODEL NUMBER
HESS+V40F51-R1
HESS* V40 Series

The HESS+ V40 series system with integrated battery

management unit (BMU) include: Based on an LISHEN LFP Battery

2.5 kWhbasic module (BB05-8S1P) scalable system energy up to

40.0KWh Standing and movable, interconnect kit for wiring

between batteries


Total Energy40.0 kWh
Nominal Power Rating5.0 kW/10.0kW
Nominal DC Voltage51.2V
Cell Capacity100Ah
Cell ChemistryLiFePo4

Current Rate

1.0C
Battery Modules2-8
Dimensions W/H/D590*1300*670
Max.Weight395 Kg
CoolingNatural and Passive

Altitude

Up to 2,500 meters (8,200 feet)

Ambient OperatingTemperature Range

Discharge: -35°C to 65C(-31F to 149F)

Charge:0C to 65C(32F t 149F)

Mounting

Floor standing and Rack Mounted
Cell chemistryLiFePO4

Design life

10-year
Warranty2

6000 Cycles

Enclosure rating
IP23

We reserve the right to make technical changes.

The values, outputs, other technical data, images, and diagrams in this prospectus and in  data sheets,     advertisements, and other promotional documents are approximate  guidelines in all cases where they   have not been identified as binding.

1 Maximum round trip efficiency shown is calculated using the single cycle round trip efficiency (SCRTE)   formula used by SGIP admin.

2 Please observe our applicable warranty conditions.
