grid scale battery grid scale storage grid scale storage system grid scale energy storage system grid scale ESS Battery ESS container storage system

GESS 5.0Mi

Nominal energy
5.02MWh
Charge-discharge Rated current
0.5C
Nominal voltage
1164.8V-1497.6V
Dimension(LxWxHmm)
6058x2438x2896mm
Battery cell
314Ah
Module
52S1P
Weight
41t

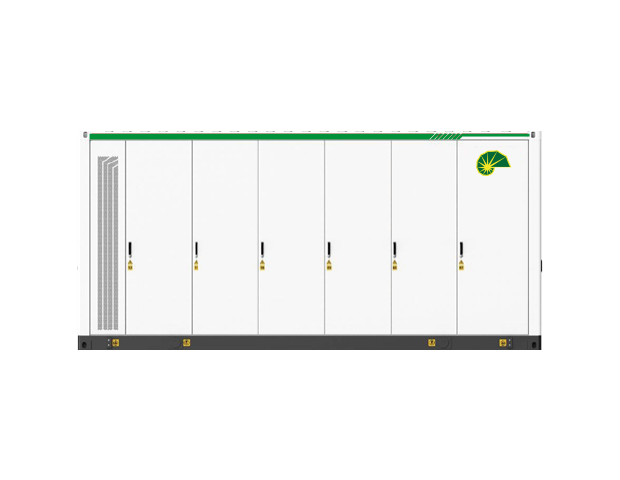

GESS 5.0Mi
This GES5.0Mi battery system is a battery system integrated in a 20-foot container. It includes: energy management system (EMS), battery management system (BMU), PCS system, thermal runaway management system, and liquid cooling system. It is a complete and efficient large-scale battery system formed by integrating multiple systems.

More +

GESS + BATTERY SYSTEM

The GESS+ series of large-scale energy storage power stations are energy storage and frequency regulation products developed for customers on the power generation side and grid side. This product can also meet the energy storage needs of large industrial users. It uses lithium iron phosphate long-life battery and has excellent safety performance. It's the perfect system to effectively manage your energy for ongoing value.

Reliable

• Use Lithium iron phosphate batteries

• Proven high reliability PCS

• limited warranty

• Liquid cooling for smooth operation

Safe

• 1000% Battery safety testing

• Lithium Iron Phosphate (LFP) chemistry for maximum safety and longevity

• Multi-level alarm and protection

• Fire suppression system

Clever

• Meshing capability for backup operations

• Remote software and firmware upgrades

• Mobile app-based monitoring

Value

• Uninterrupted use of energy

• Smooth the peak and valley of the power grid

• Grid frequency regulation

• Promote the realization of energy freedom

Data Sheet

GESS 5.0Mi

Rated Energy	5.02MWh
Rated Voltage	1331.2vDC
Voltage range	1164.8~1497.6vDC
Rated Charge/Discharge Power	0.5P
Max. Charge and Discharge Current	180A
System Management	BAMU/BCMU/BMU
Cell Capacity	314Ah
Cell Voltage	3.2v
Module Series/Parallel	52S1P
Cluster Contains	8 module
Max System Contains	12 cluster
Cooling Method	Liquid cooling
Fire Fighting System	Perfluorohexanone
System Dimension(LxDxH)	605824382896mm
Weight	41t(Appr.)

We reserve the right to make technical changes. The values, outputs, other technical data, images, and diagrams in this prospectus and in data sheets, advertisements, and other promotional documents are approximate guidelines in all cases where they have not been identified as binding.

Download +

Others

GESS 5.0Mi
- Nominal energy
  5.02MWh
- Charge-discharge Rated current
  0.5C
- Nominal voltage
  1164.8V-1497.6V
Datasheet
GESS 3.7Mi
- Nominal energy
  3.72MWh
- Charge-discharge Rated current
  0.5C
- Nominal voltage
  1331.2v
Datasheet
GESS 1.4Mi
- Nominal energy
  1.47MWh
- Charge-discharge Rated current
  2C
- Nominal voltage
  729.6V
Datasheet
GESS 3.4Mi
- Nominal energy
  3.35MWh
- Charge-discharge Rated current
  0.5C
- Nominal voltage
  1331.2v
Datasheet
GESS 3.3Mi
- Nominal energy
  3.29MWh
- Charge-discharge Rated current
  1C
- Nominal voltage
  1142~1468.8V
Datasheet
