CESS+ 215i

  • Rated energy

    215kWh

  • Max cell currrent

    1C

  • Cell Series Parallel

    1P240S

  • Pack modules

    5

  • Usable capacity

    204.3kWh

  • Rated grid voltage

    400VAC, 50Hz/60Hz

  • Nominal voltage

    768vDC

  • Temp operating range

    -20°C to 60°C

More +

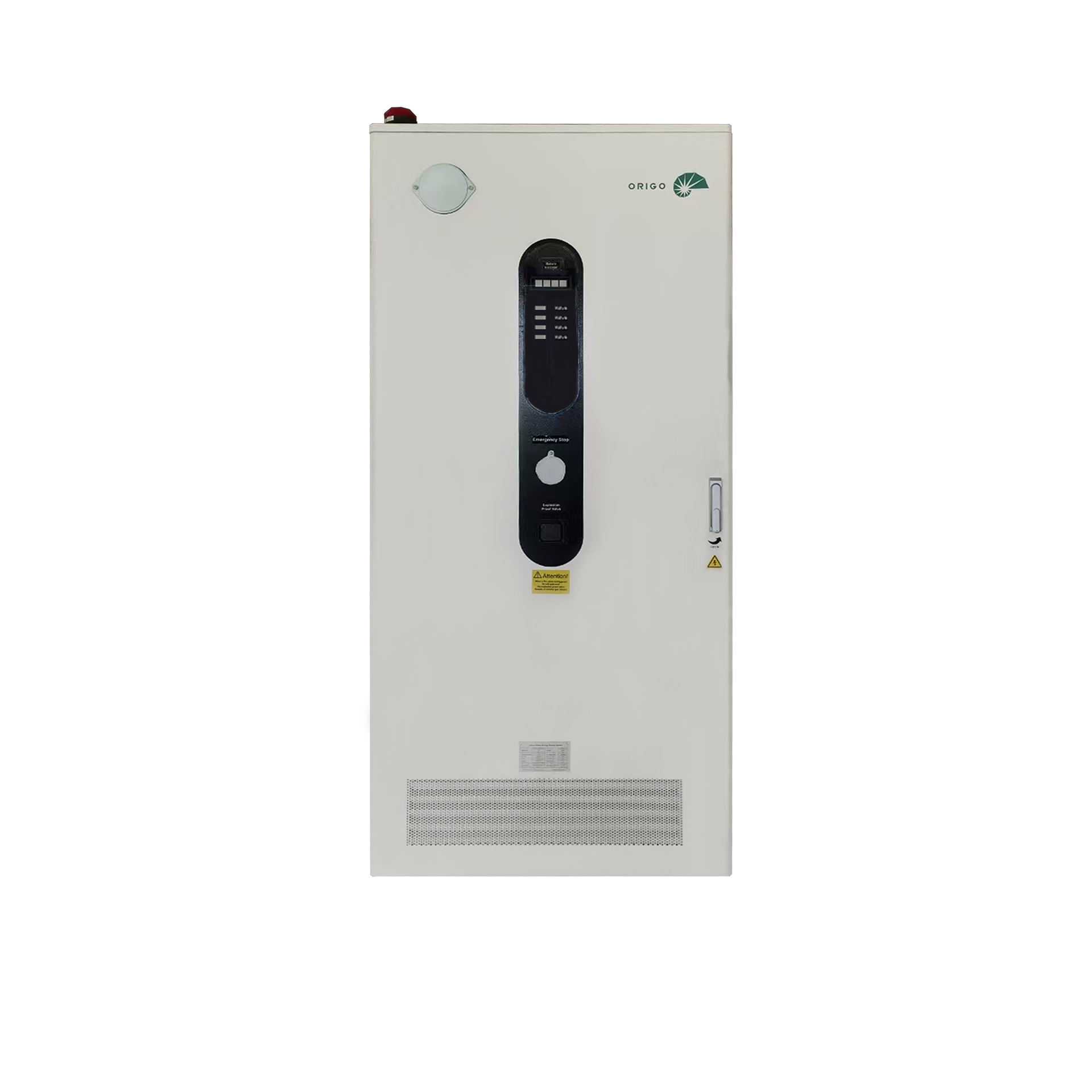

CESS+ Battery System

The CESS + series product is an energy storage product specially developed for industrial and commercial customers. It uses lithium iron phosphate long-life batteries, and the battery energy is as high as 215kWh.

It is safe and intelligent. It can be used in conjunction with solar power generation, and can also take advantage of the peak-valley price difference of the power grid. Energy storage to manage your energy efficiently. It consists of 4 battery module units, 1 set of high-performance inverter and 1 set of liquid cooling system. Can effectively meet customer demand for energy.

Reliable

• Use long-life batteries

• Proven high reliability inverter

• limited warranty

• Separate battery base unit

• Liquid cooling for smooth operation

Safe

• Battery safety testing

• Lithium Iron Phosphate (LFP) chemistry for maximum safety and longevity

• Multi-level alarm and protection

• fire suppression system

Clever

• Meshing capability for backup operations

• Remote software and firmware upgrades

• Mobile app-based monitoring

Convenient

Uninterrupted use of energy. Store excess solar energy for nighttime use, and use the power grid peak and valley price difference for energy storage. Helps achieve energy freedom.



Data Sheet

CESS+ 215i

MODEL NUMBER
CESS+ 215i
CESS+ 215i

This CESS232i battery system is based on Lishen's 11.65kWh battery unit module, which can be expanded to a 372KWh battery system. It integrate battery management unit (BMU), PCS,thermal runaway management unit, liquid cooling unit, and is a perfect and efficient battery system.

Total Energy215kWh
Cell Capacity280Ah
Battery modules5
AC Power Parameters400vAC，50Hz
Max cell currrent1C
DC voltage range672~864vDC
CoolingLiquid cooling
AltitudeUp to 2,500 meters (8,200 feet)
Ambient operating temperature range-20ºC to 60ºC

We reserve the right to make technical changes. The values, outputs, other technical data, images, and diagrams in this prospectus and in data sheets, advertisements, and other promotional documents are approximate guidelines in all cases.where they have not been identified as binding.
