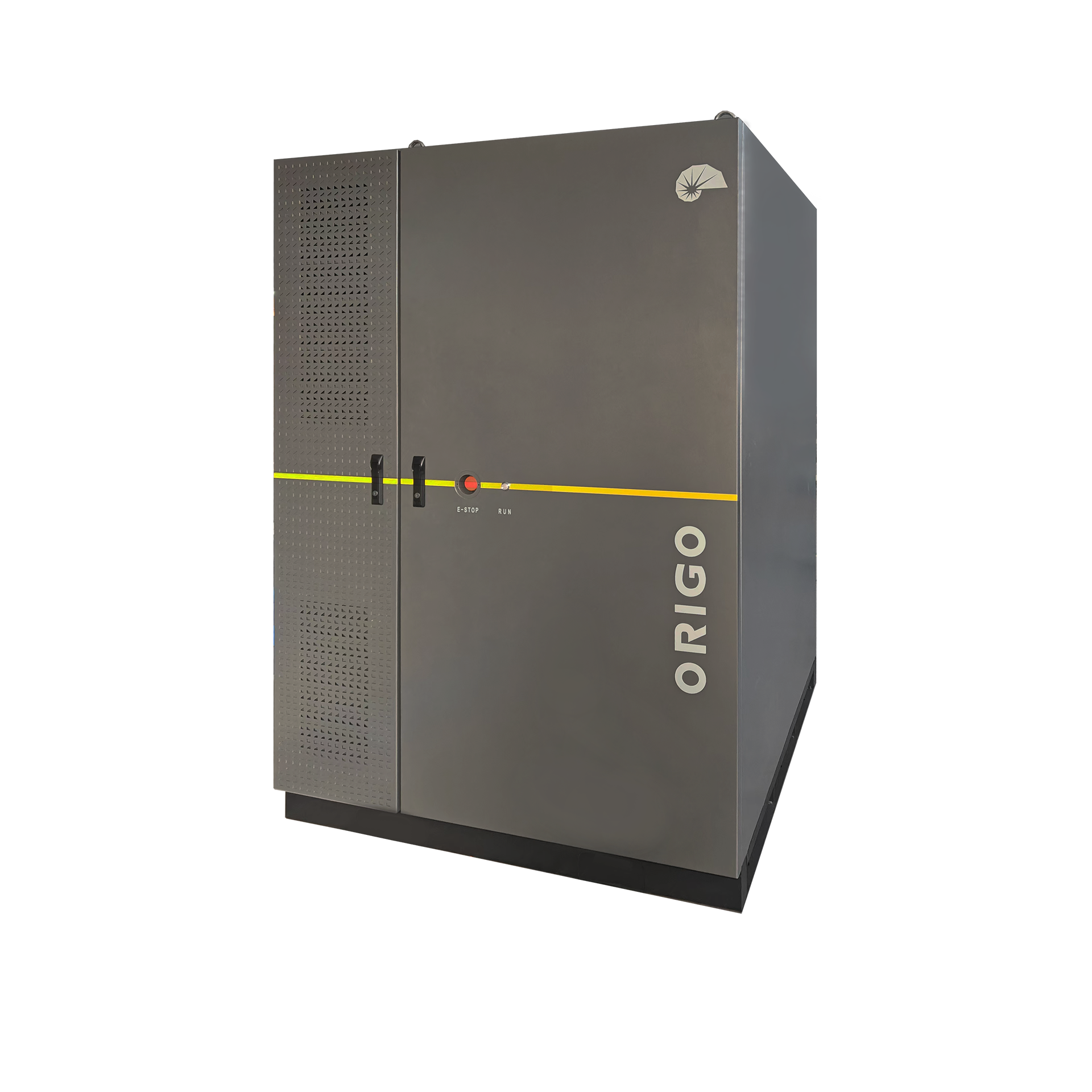

CESS+ 232i

  • Total Energy

    232.9kWh

  • Cell Series Parallel

    1P260S

  • Nominal voltage

    832Vdc

  • DC current range

    0~320A

  • Usable capacity

    209kWh

  • Battery modules

    5

  • Dimensions (L*D*H）

    1380*1350*2000mm

  • Weight

    2500Kg±3%

More +

CESS+ Battery System

CESS+series products are energy storage battery solutions specificallydeveloped for industrial and commercial customers. Utilizing long-life lithium iron phosphate batteries, they offer an impressive energy capacity of up to 232 kWh. These systems are not only safe but also intelligent. They can be combined with solar power generation or leverage the electricity price difference between peak and off-peak hours on the grid to store inexpensive electricity, maximizing returns. Energy storage enables efficient energy management and delivers lasting value.

Reliable

• Use long-life batteries

• Proven high reliability inverter

• limited warranty

• Separate battery base unit

• Liquid cooling for smooth operation

Safe

• Battery safety testing

• Lithium Iron Phosphate (LFP) chemistry for maximum safety and longevity

• Multi-level alarm and protection

• fire suppression system

Clever

• Meshing capability for backup operations

• Remote software and firmware upgrades

• Mobile app-based monitoring

Convenient

Uninterrupted use of energy. Store excess solar energy for nighttime use, and use the power grid peak and valley price difference for energy storage. Helps achieve energy freedom.





Data Sheet

CESS+ Smart 100

MODEL NUMBER
CESS+ 232i
CESS+ 232i

CESS+232i battery system is based on standard 46.6 kWh battery modules, allowing scalability to a 232 kWh system with just five modules. It is a highly integrated system, including components such as a Battery Management Unit (BMU), Energy Management System (EMS), Battery Management System (BMS), Power Conversion System (PCS), Uninterruptible Power Supply (UPS), Thermal Runaway Management Unit, and Liquid Cooling Unit. This makes it a perfectly efficient energy storage battery system.

Nominal Energy232.9kWh
Nominal Power266.0kW
Nominal Capacity320Ah
Nominal voltage832Vdc
Cell Series ＆ Parallel
260S1P
Usable Capacity209kWh
Dimensions of One Cabinet (L*W*H)1380*1350*2000mm
Weight2500Kg±3%
Battery Modules5
AC Power Parameters380Vac，50Hz
AC output current range0-320A
DC Voltage Range0V~1500V dc
Coolingliquid cooling
AltitudeUp to 2,500 meters (8,200 feet)
Ambient Operating Temperature Range
-25ºC to 85ºC (-13ºF to 185ºF)

We reserve the right to make technical changes. The values, outputs, other technical data, images, and diagrams in this prospectus and in data sheets, advertisements, and other promotional documents are approximate guidelines in all cases.where they have not been identified as binding.
